XAVIAN Technology

Scan-Speak Revelator tweeter

• 38 mm Scan-Speak Revelator ring dome, SD-2 low distortion neodymium motor system, aluminium voice coil, no ferrofluid

  Features:

  • 1" Ring Dome Diaphragm
  • Small neodymium magnets are placed on a star-shaped pole piece, giving a very open construction which allows free airflow inside the tweeters rear chamber
  • Free airflow inside the tweeter reduces air compressions in the chamber and results in a very smooth and natural sound revealing even the smallest details in the high frequency band
  • Silver Anodized Mashined Alu Face Plate
  • Non Resonant Alu Rear Chamber

• Symmetrical Drive (SD-2):

  • Controls eddy currents in the motor system and flattens the impedance curve
  • Reduces distortion as well as providing a symmetric induction around the gap centre point
  • Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

Scan-Speak Classsic tweeter

• 29 mm Scan-Speak Classic using the Revelator tweeters motor system, impregnated fabric soft dome, no ferrofluid

  Features:

  • 1" Textile Dome Diaphragm
  • Low Resonance Rear Chamber
  • Black Painted Alu Face Plate

  Symmetrical Drive (SD-2):

  • Controls eddy currents in the motor system and flattens the impedance curve
  • Reduces distortion as well as providing a symmetric induction around the gap centre point
  • Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

Scan-Speak Ring radiator tweeter

• 26 mm Ring Radiator, copper shortcircuiting ring, non-reflective rear chamber, wave-guide center plug

  Features:

  • 1" Dual Ring Radiator Diaphragm
  • Wave-guide Center Plug
  • Very Low Resonance Frequency
  • Non-reflective Rear Chamber
  • Double Magnet (Carisma and Virtuosa)

Vifa/Scan-Speak Wide surround dome tweeter

• 25 mm Vifa/Scan-Speak, treated fabric soft dome, wide surround

  Features:

  • 1" Dome Diaphragm
  • Low Resonance Frequency
  • Wide Surround: the wider (large roll) surround increases the total active diaphragm area and gives a higher output (sound pressure); the increased area closest to the voice coil gives in combination with its shape a much wider sound dispersion as well as extended high frequency output

Wide angle dispersion dome tweeter

• 25 mm impregnated soft dome design

  Features:

  • 25 mm selected XAVIAN soft dome design made in Italy
  • Impregnated fabric soft dome
  • Copper shortcircuiting ring
  • Wide angle dispersion design
  • Die-cast Aluminum faceplate

High power dome tweeter

• 26 mm impregnated soft dome design

  Features:

  • 26 mm exclusive custom made in Italy
  • Impregnated fabric soft dome
  • Working chamber under the membrane
  • Magnetic structure with high power handling

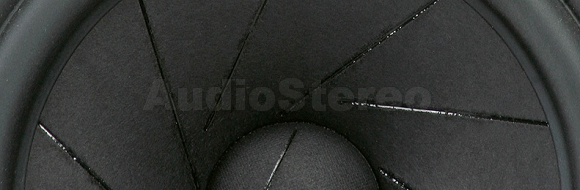

Scan-Speak Revelator midbass units

• 180/ 150/ 120 mm Scan-Speak Revelator, sliced paper cone technology, Symmetrical Drive (SD-1) low-distortion motor, low-loss linear suspension

  Sliced Paper Cone:

  • The slices are filled with damping glue, which dramatically reduce break-up modes in the diaphragm
  • In combination with Scan-Speaks Low-Loss Linear Suspension and the patented Symmetrical drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics

  Symmetrical Drive (SD-1):

  • Controls eddy currents in the motor system and flattens the impedance curve
  • Reduces distortion as well as providing a symmetric induction around the gap centre point
  • Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

  Low-Loss Linear Suspension:

  • Low Loss Linear Suspension is a combination of a soft surround, a spider with linear tension and a low damping voice coil former, perfectly trimmed so risk of instability is avoided, no matter which signal level applied
  • Having the moving parts (cone, dust cap, spider and voice coil) soft suspended opens the ability to move easily and fast, also when signal levels are low
  • The desired result is a driver which reproduces not only the main signal perfect, but also the smallest transients are reproduced with care for detail

Scan-Speak carbon paper midbass units

• 180 mm Scan-Speak, paper membrane with carbon fibers, SD-1 low-distortion motor, die cast Alu Chassis, low-loss linear suspension

  Air Dried Paper/Carbon Fibre Cone:

  • Fast transient response
  • Precise excursion of the diaphragm

  Symmetrical Drive (SD-1):

  • Controls eddy currents in the motor system and flattens the impedance curve
  • Reduces distortion as well as providing a symmetric induction around the gap centre point
  • Achieved by special shaping of the components around the voice coil gap and by use of copper caps or rings

  Low-Loss Linear Suspension:

  • Low Loss Linear Suspension is a combination of a soft surround, a spider with linear tension and a low damping voice coil former, perfectly trimmed so risk of instability is avoided, no matter which signal level applied
  • Having the moving parts (cone, dust cap, spider and voice coil) soft suspended opens the ability to move easily and fast, also when signal levels are low
  • The desired result is a driver which reproduces not only the main signal perfect, but also the smallest transients are reproduced with care for detail

Scan-Speak Paper midbass units

• 150 mm Scan-Speak mid-bass

• Features:

  • impregnated paper membrane
  • soft dust cap
  • shortcircuiting ring in the motor
  • die cast Alu Chassis vented below spider

Twin-wave surround 132mm Paper midbass units

• 132 mm exclusive custom made in Italy mid-bass

• Features:

  • Impregnated paper membrane made in Italy
  • Aluminium voice coil on kapton former
  • Non resonant twin-wave rubber surround
  • Die-cast Aluminum chassis, vented below spider
